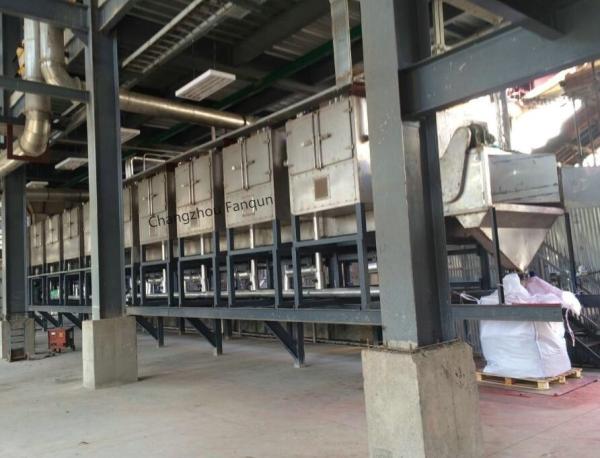

Belt Dryer for Drying Dyes and Pigment

Model NO. : DW

Dw1.6-10 : 10zones

Dw2.0-10 : 10zones

Structure : Air Flow Drier

Operational Method : Continuous

Type of Flow : Cross Flow

Sprayer : Air-Flowing Type

Appearance of Dried Sample : Bulk, Vegetable, Fruit, Pigment, Granule

Type of Atomization : PLC Control

Trademark : Changzhou Fanqun

Transport Package : Foam

Specification : CE

Origin : Changzhou, China

HS Code : 841939909

Port : Shanghai, China

Supply Ability : 50kg/Hr To2000kg/Hr

Payment Terms : L/C, T/T

Movement Way : Combined

Heating Mode : Steam, Electricity, Natural Gas, Coal

Drying Medium : Air

Operation Pressure : Atmospheric Dryer

Dw1.2-8 : 8zones

Dw1.2-10 : 10zones

Contact Now

Product Description

Customer Question & Answer

Ask something for more details

(0)

About Belt Dryer
Belt Dryer is a continuous drying equipment with belt conveyer in the chamber. Product will be put on the belt and contact with hot air in each zone of dryer. Temperature in each zone could be controlled separatedly.

Applications:
- chemicla products
- pharmaceutical products
- food products
- vegetables
- fruit
- feed granule
- melon seeds
- seaweed
- pigment
- wood chips
- coconut shred
- plastic
- filter cakes
- rubber

Sketch of Belt Dryer

Belt Dryer for Drying Dyes and Pigment

Technical Parameter Sheet

Model	Zone No.	Length of drying zone	Operation Temp.	Steam Consum.	Installed Power
Dw1.2-8	4	8m	60-140°C	120-300kg/hr	11.4KW
Dw1.6-8	4	8m	60-140°C	150-375kg/hr	13.6KW
Dw1.6-10	5	10m	60-140°C	170-470kg/hr	13.6KW
DW2-8	4	8m	60-140°C	180-500kg/hr	12.5KW
DW2-10	5	10m	60-140°C	225-600kg/hr	14.7kw
